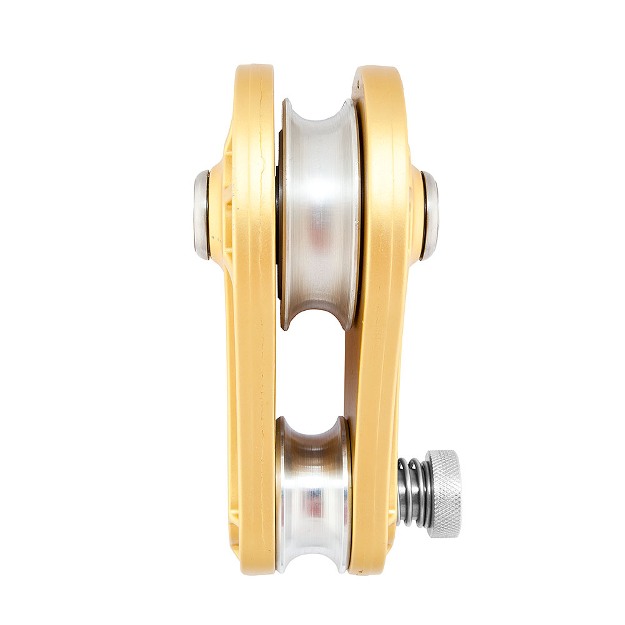

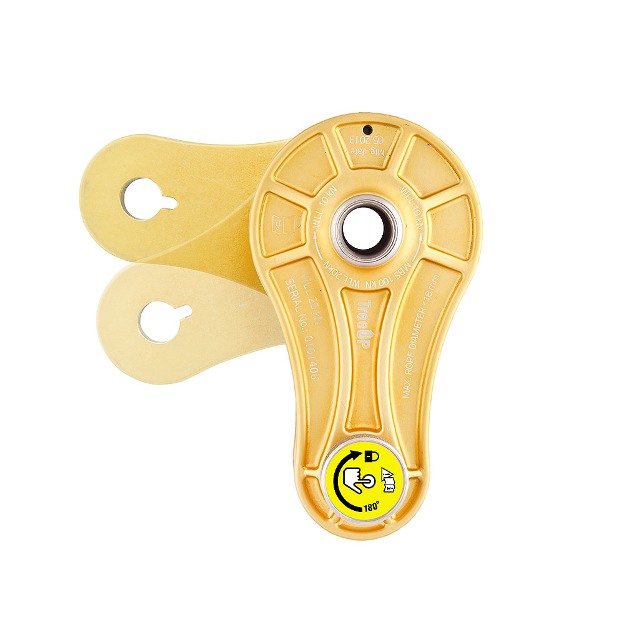

Strong pulley, belt pulley made of light alloy.
The side plates are rotatable and can be quickly attached or detached with a bayonet lock. The block is directly attached to the loop or a loop without a carabiner. This catch block is very suitable for heavier catching work and suitable for lines up to 18 mm. The flanges of this pulley have a small hole and a cable that can be used to easily hang it on the belt.
Strong pulley, belt pulley made of light alloy.
The side plates are rotatable and can be quickly attached or detached with a bayonet lock. The block is directly attached to the loop or a loop without a carabiner. This catch block is very suitable for heavier catching work and suitable for lines up to 18 mm. The flanges of this pulley have a small hole and a cable that can be used to easily hang it on the belt.
Strong pulley, belt pulley made of light alloy.
The side plates are rotatable and can be quickly attached or detached with a bayonet lock. The block is directly attached to the loop or a loop without a carabiner. This catch block is very suitable for heavier catching work and suitable for lines up to 18 mm. The flanges of this pulley have a small hole and a cable that can be used to easily hang it on the belt.
Not suitable for steel cables.
Dimensions: 176×86×88 mm
Minimum strength: 100 kN
Load capacity: 20 kN
Safety factor: 5:1
Max. rope diameter: up to 18 mm
Hole diameter in axis: 18 mm
Material: body - forged aluminium; main pivot - stainless steel; rollers - aluminium
Available colours: blue, dark red, black, gold
EN 12278:2007
Strong pulley, belt pulley made of light alloy.
The side plates are rotatable and can be quickly attached or detached with a bayonet lock. The block is directly attached to the loop or a loop without a carabiner. This catch block is very suitable for heavier catching work and suitable for lines up to 18 mm. The flanges of this pulley have a small hole and a cable that can be used to easily hang it on the belt.
Not suitable for steel cables.
Dimensions: 176×86×88 mm
Minimum strength: 100 kN
Load capacity: 20 kN
Safety factor: 5:1
Max. rope diameter: up to 18 mm
Hole diameter in axis: 18 mm
Material: body - forged aluminium; main pivot - stainless steel; rollers - aluminium
Available colours: blue, dark red, black, gold
EN 12278:2007
| Name | Product code |
| TU 400 (1.38 kg) | XPTU400 |
