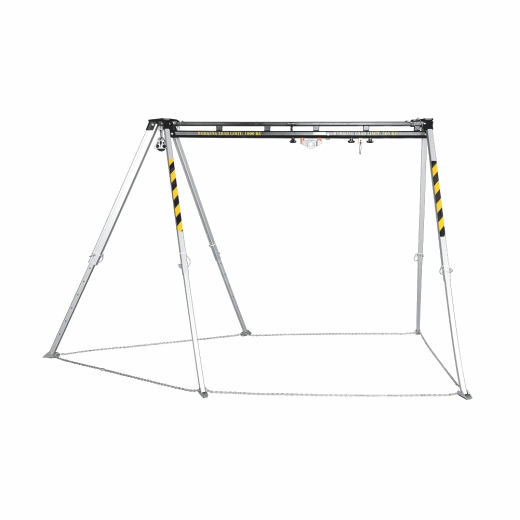

The tripod system with horizontal beam and support legs is designed to lift persons or loads from a vertical shaft and move them out of the shaft area.
The beam is equipped with two movable anchor points with working load limits of 1,000 and 500 kg. The tripod can be used independently for rescuing two people or for lifting and lowering loads up to 1,000 kg. The tripod can be combined with the RUP 502U, RUP 503U and RUP 505U winches. It can also be used with the CRW 300 retractable fall arrestor for rescue work.
Height: 139-221 cm
Diameter of the hole under the tripod: 150-223 cm
Tripod spacing: 139-191 cm
Spacing of the whole device: 325-368 cm
Arm weight: 30 kg
Arm length: 230 cm
Device weight: 72 kg
Maximum permissible load: 1 000 kg
Lifting/lowering for: max. 2 persons
Fixed anchor points: 4
Mobile anchor points: 2
Transport dimensions: 254×33×33 cm
EN 795 B
