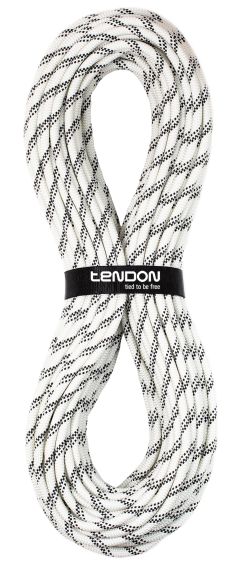

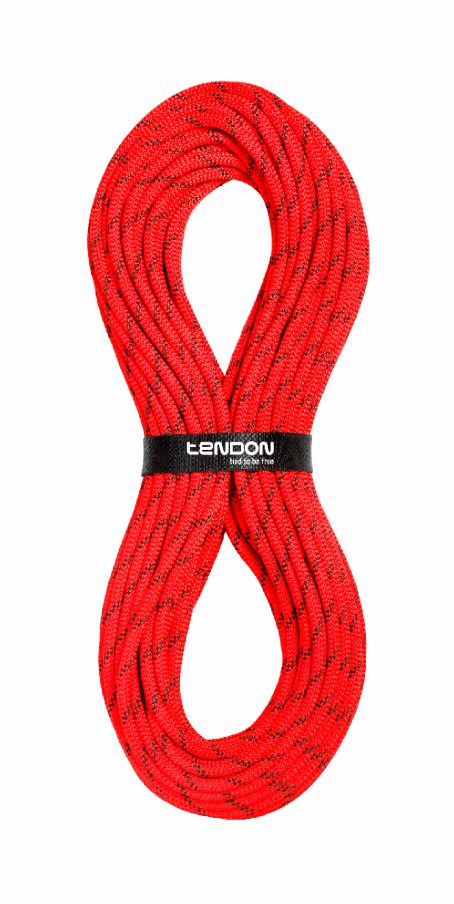

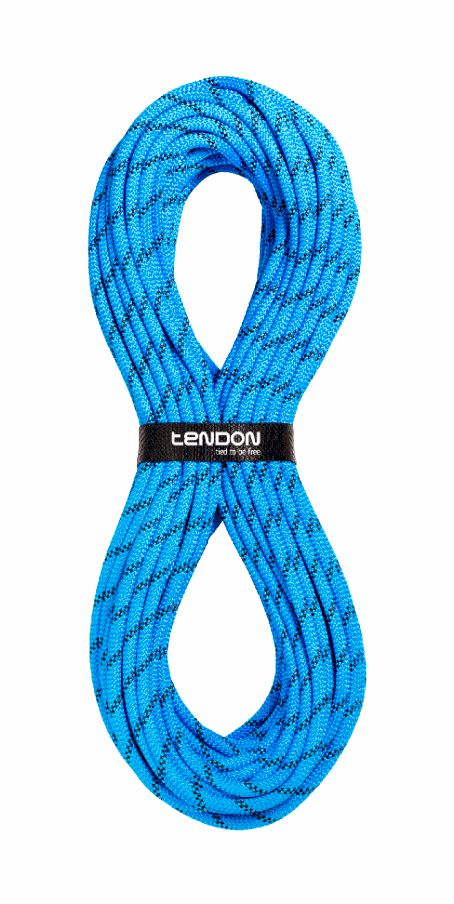

STATIC rope

When working at heights, it is important to use ropes that meet the prescribed standards and thus the strictest safety requirements. This rope meets them and is therefore designed especially for working at heights and securing people over an open drop.

The strength of the rope increases with increasing diameter.

The rope is produced in diameters of 9 mm, 10 mm, 10.5 mm, 11 mm, 12 mm and 13 mm.

The strength of the rope increases with increasing diameter.

The rope is produced in diameters of 9 mm, 10 mm, 10.5 mm, 11 mm, 12 mm and 13 mm.

PPE

Static ropes

Tentative inquiry

The strength of the rope increases with increasing diameter.

The rope is produced in diameters of 9 mm, 10 mm, 10.5 mm, 11 mm, 12 mm and 13 mm.

Packaging

coils: 30, 40, 45, 50, 60, 70, 80 m
spools: 100, 200 m
other lengths and packaging by agreement

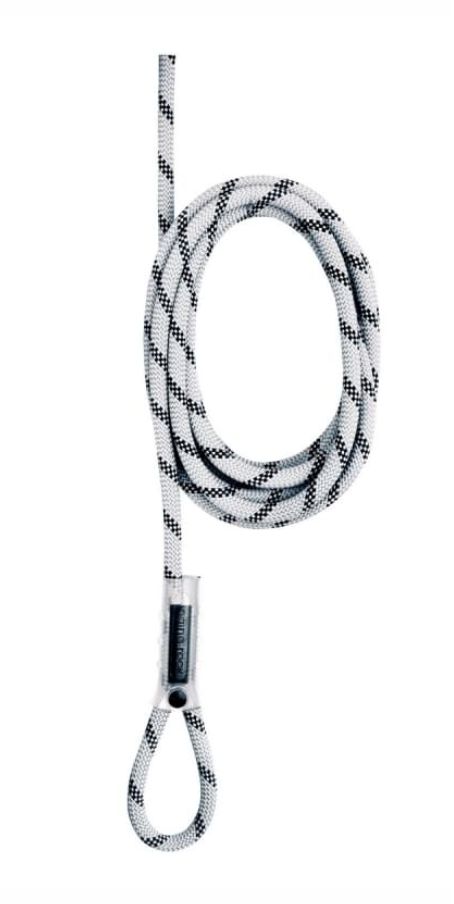

A sewn ending is available up on request.

EN 1891, CE 1019

Tentative inquiry

The strength of the rope increases with increasing diameter.

The rope is produced in diameters of 9 mm, 10 mm, 10.5 mm, 11 mm, 12 mm and 13 mm.

Packaging

coils: 30, 40, 45, 50, 60, 70, 80 m
spools: 100, 200 m
other lengths and packaging by agreement

A sewn ending is available up on request.

EN 1891, CE 1019

Rope diameter [mm]	9	10	10.5	11	12	13
Weight [g/m]	50	69	72	80	92	109
Number of UIAA falls	15	20	20	20	20	20
Relative weight of the braid [%]	49	38	36	39	35	46
Sheath slippage [%]	0.4	0.1	0.1	0.3	4	0
Elongation (50-150 kg) [%]	5	4.1	3.6	3.7	3.2	3
Shrinkage [%]	0.6	2	1.9	1.9	1.8	1.1
Strength [kN]	23	31	32	33	42	42
Min. strength with knots [kN]	13	17	18	20	25	27
Material used	PA	PA	PA	PA	PA	PA
Type	Group B	A	A	A	A	A
